Miniature Shock Absorbers
MC25MH
Shock absorbers in miniature format
Self-Compensating
Energy capacity 20 in-lbs/cycle
Stroke 0.26 inch
Ideal for compact, efficient designs: The miniature size of the product family MC5 to MC75 delivers very short overall lengths and low return forces.
The outer body of each shock, produced from one solid piece, is filled with temperature stable oil, offers a continuous outer body thread including a supplied lock nut and also has an integrated positive stop. These maintenance-free hydraulic machine elements from ACE are ready for immediate installation. A wide range of energy absorption and effective weight are further benefits in these compact units. Self-compensating shock absorbers react to changing energy conditions, without adjustment.
These self-compensating miniature shock absorbers are perfectly suited to use in applications such as rotary actuators, automation, light industrial manufacturing, material handling and packaging equipment, medical, electronics and robotics.
The outer body of each shock, produced from one solid piece, is filled with temperature stable oil, offers a continuous outer body thread including a supplied lock nut and also has an integrated positive stop. These maintenance-free hydraulic machine elements from ACE are ready for immediate installation. A wide range of energy absorption and effective weight are further benefits in these compact units. Self-compensating shock absorbers react to changing energy conditions, without adjustment.
These self-compensating miniature shock absorbers are perfectly suited to use in applications such as rotary actuators, automation, light industrial manufacturing, material handling and packaging equipment, medical, electronics and robotics.
Miniature Shock Absorbers
MC25MH
Shock absorbers in miniature format
Self-Compensating
Energy capacity 20 in-lbs/cycle
Stroke 0.26 inch
Energy capacity 20 in-lbs/cycle
Stroke 0.26 inch
$--.--
This product is not available for
online order.
online order.
If you are interested in ordering this
product, click the inquiry form below
and we will contact you.
product, click the inquiry form below
and we will contact you.

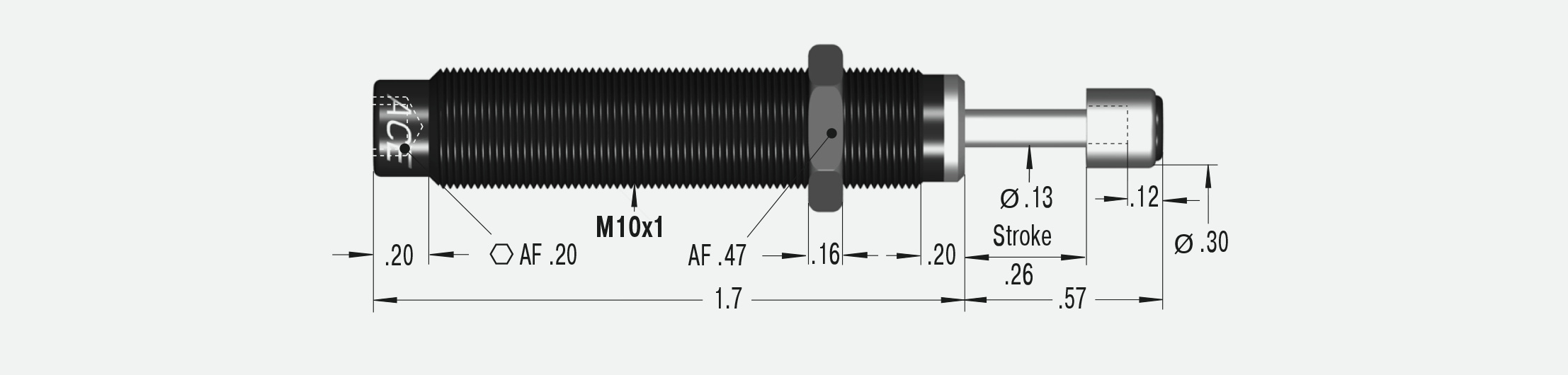

CAD Drawings
Product-Downloads
Operating & Mounting Instructions
250-0315_M_TP_TECHdraw-F-dim_RGB-M_US.jpg)
250-0408_M_TP_TECHdraw-F-dim_RGB-M_US.jpg)

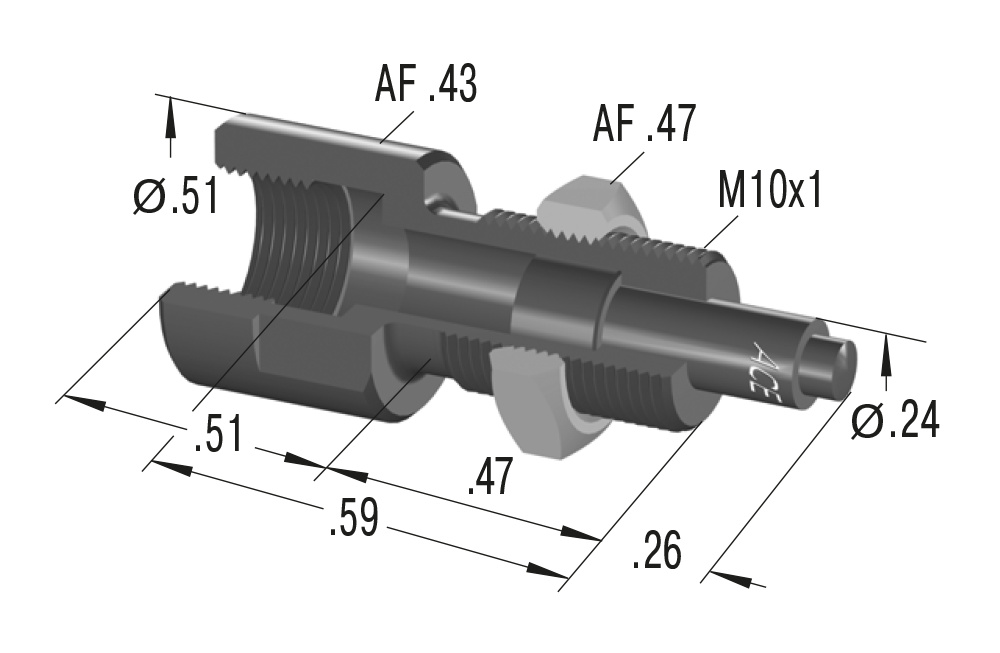

250-0562_M_TP_TECHdraw-F-dim_RGB-M_US.jpg)

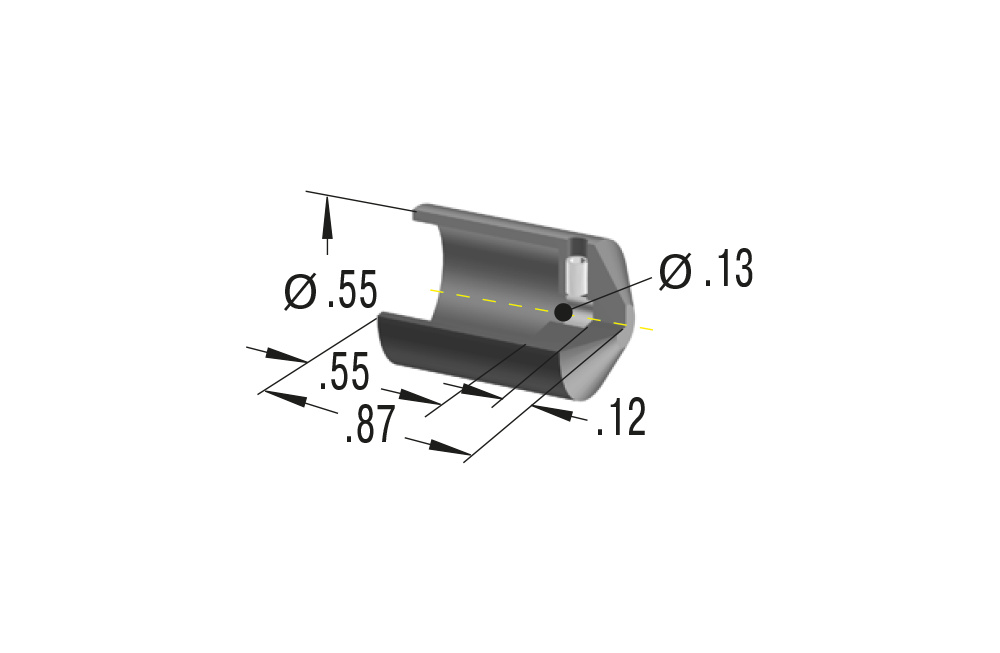

250-0834_TP_TECHdraw-F-dim_RGB-M_US.jpg)

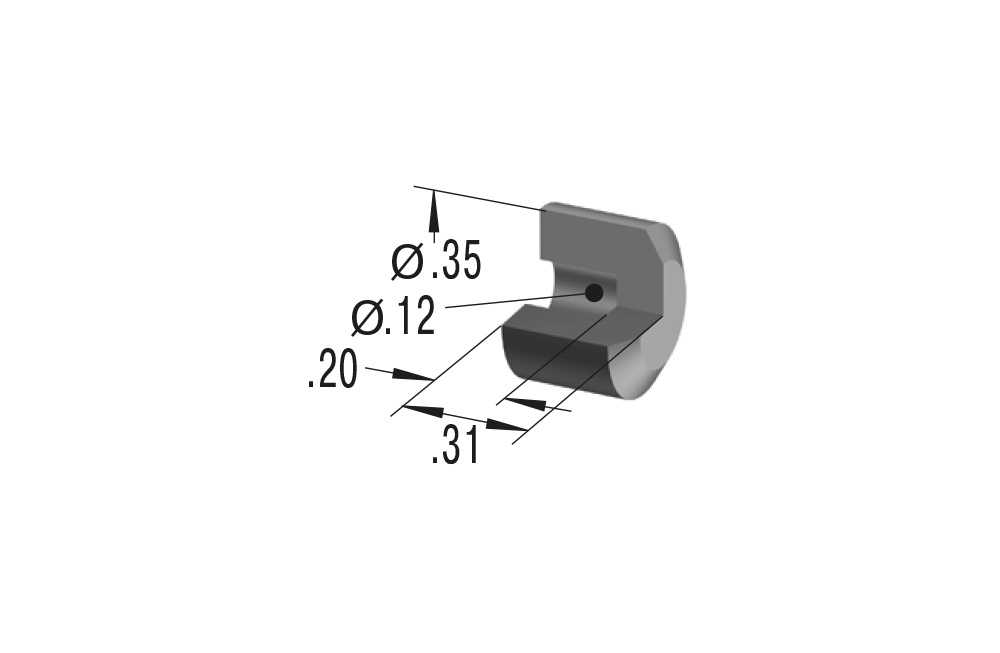

250-0124_TP_TECHdraw-F-dim_RGB-M_US.jpg)
250-0094_TP_TECHdraw-F-dim_RGB-M_US.jpg)
250-0307_M_TP_TECHdraw-F-dim_RGB-M_US.jpg)
